Edit Matrix Visualization

You can edit the matrix visualization and properties in matrix view of Explorer.

Attach properties to specific characteristics

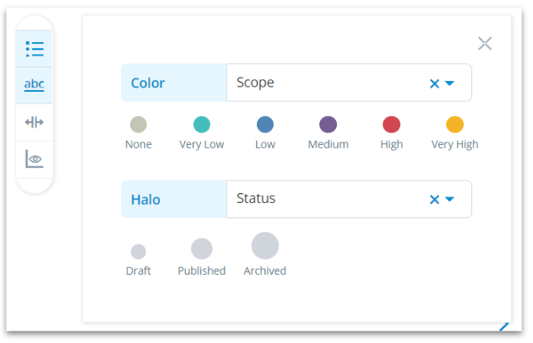

Open the Legend of the matrix via the toolbar. Now you can choose which property shall be attached to which matrix characteristic: use the drop-down menu in each section to select a property. Characteristics can consist of Color and Halo of the Elements and the ranges of the diagram axes.

Change and reset colors

Click on a dot on the Legend and use the color picker to assign a new color. Reset Colors will restore the original color settings.

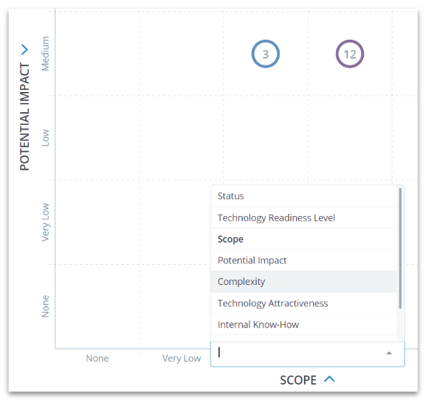

Exchange properties on the x- and y-axis

Click on the property descriptor of an axis and exchange the property according to your needs.

Note: Numbers on dots of the visualization tell how many elements are rated/defined the same. Click on the dot to see the element titles.
