Save and Delete Custom Radar Views

You can save your customized Radar view to share it with all Workspace users.

Only selected element types and certain adjustments in the legend (selected properties; invert value in distance property) can be saved.

Save a Custom Radar View

1. Open a Radar view.
2. Select Element types in the quick filter section to appear on the Radar.
3. Use the configuration panel to customize the Radar.

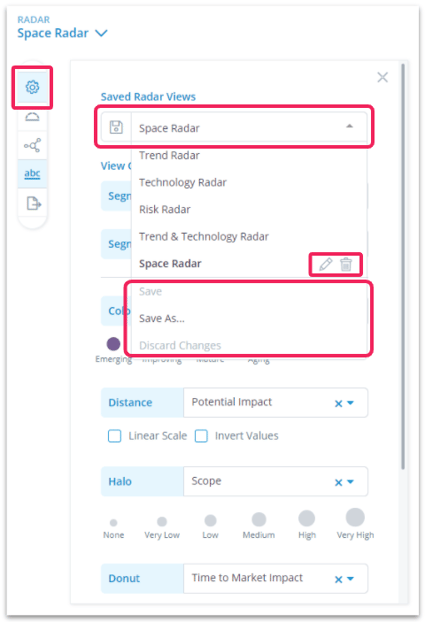

4. Click on the disk icon in the configuration panel to open the saving options.
5. Click on Save As to open the saving dialog. Enter a name and confirm with Save.



Reset Customization of a Radar View

Changes in a saved Radar view are indicated by an asterisk (*) next to the Radar name. Click the Discard Changes button to return the Radar view to its original state.

Edit a Radar View Name

1. Open the saved Radar dropdown in the Radar configuration panel.
2. Click the pencil icon beside the Radar name on the menu and confirm your changes with Save.

Delete a Custom Radar View

1. Open the saved Radar dropdown in the Radar configuration panel.
2. Click the trash icon beside the Radar name on the menu and confirm with Delete.
